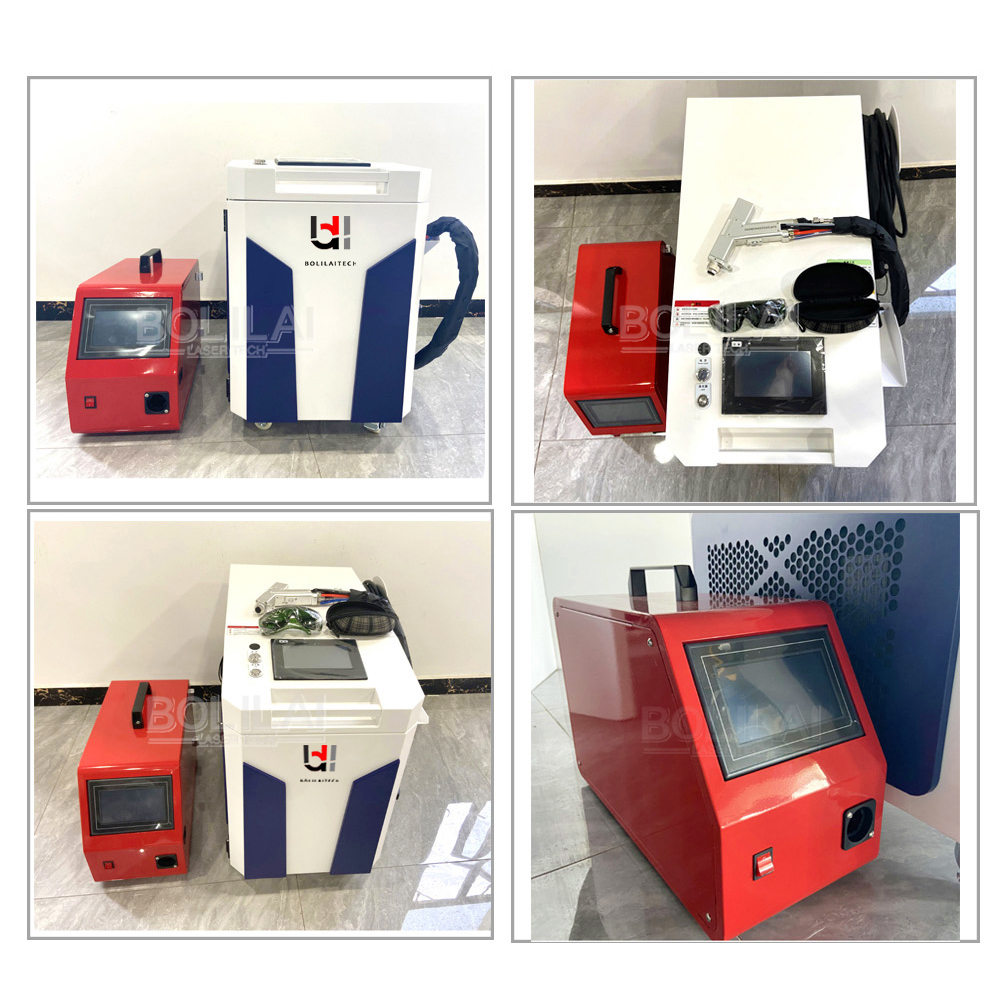

4 in1 Laser Welding Machine

Model	BL-AW1000	BL-AW1500	BL-AW2000
Power	1000W	1500W	2000W
Laser Frequency	50-5000HZ	50-5000HZ	50-5000HZ
Power Range	10-100%	10-100%	10-100%
Welding penetration(Stainless steel )	2mm	3mm	4mm
Welding penetration(carbon steel )	2mm	3mm	4mm
Welding penetration(Galvanized Sheet )	2mm	3mm	4mm
Welding penetration (Aluminium alloy)	1mm	2mm	3mm
Fiber Length	10/15m	10/15m	10/15m
Power Supply	220V 50/60Hz	220V 50/60Hz	380V 50/60Hz
Cooling Method	Water Cooling	Water Cooling	Water Cooling
Machine Size	700600900mm（Can be customized according to customer requirements）

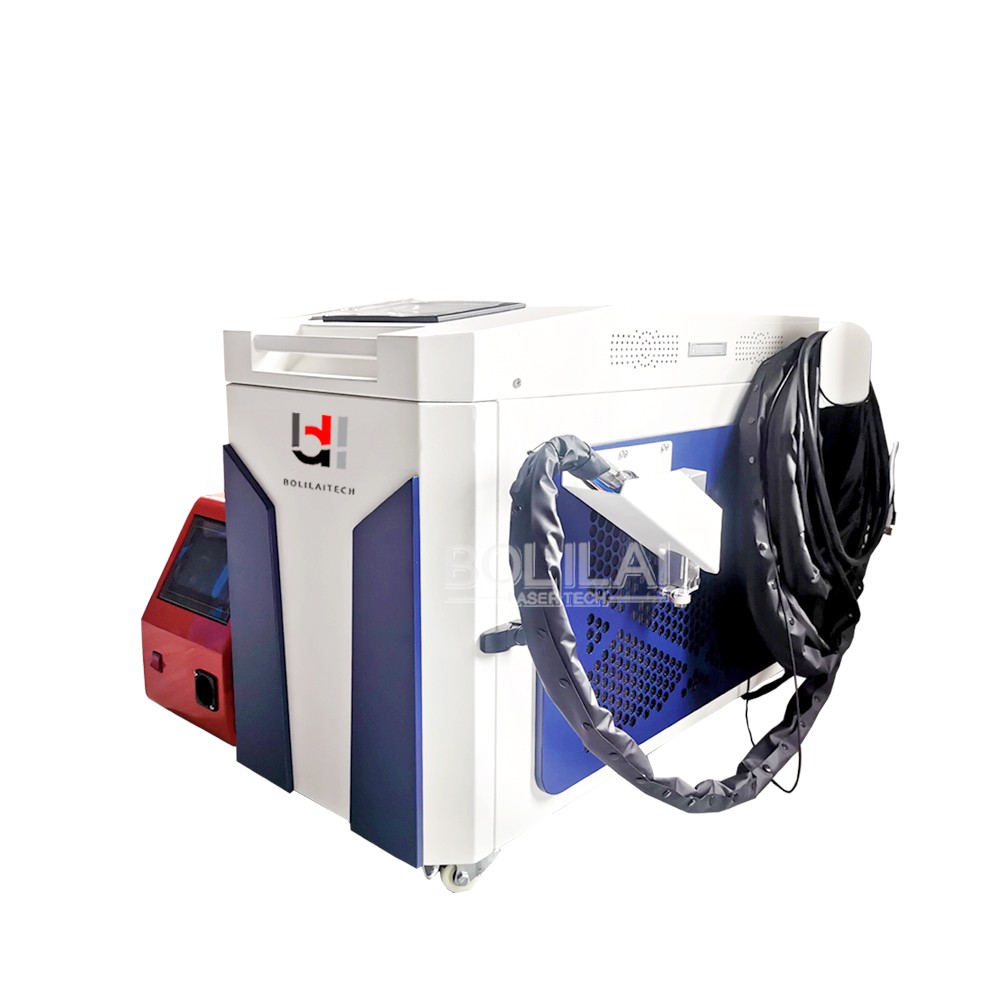

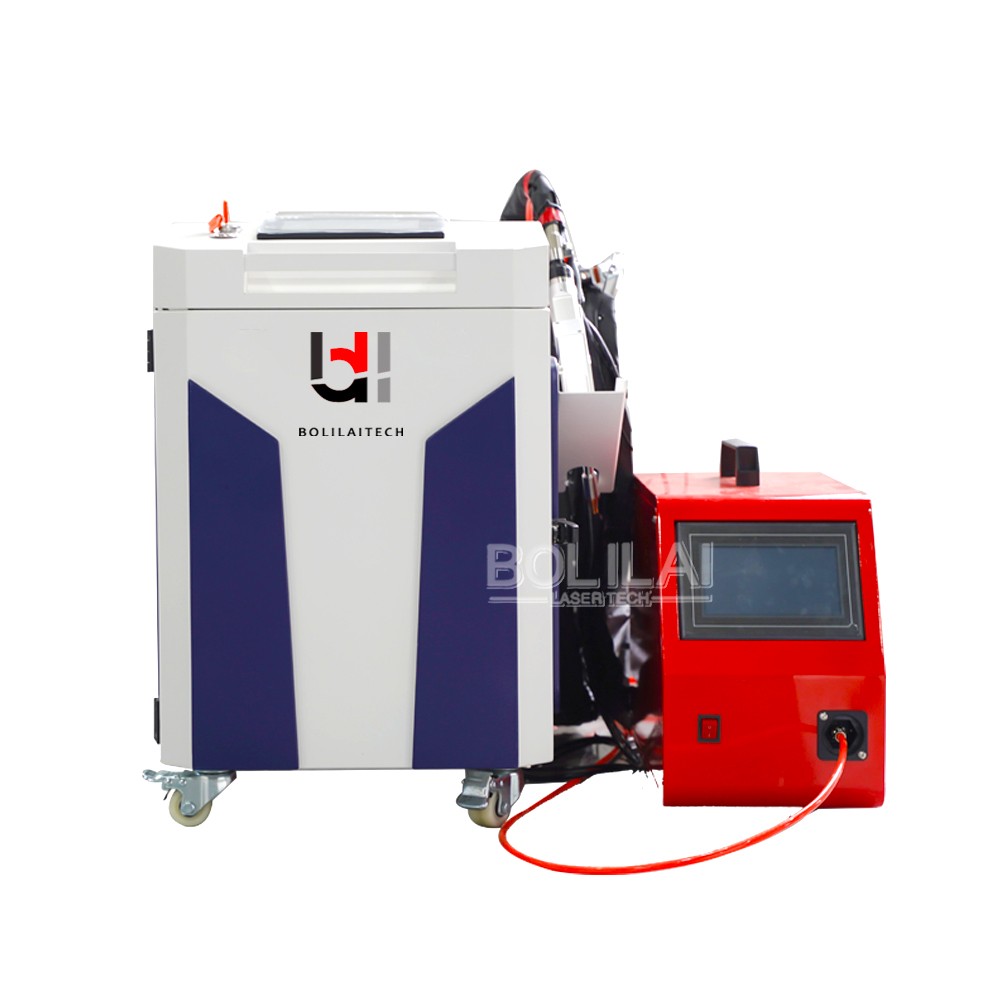

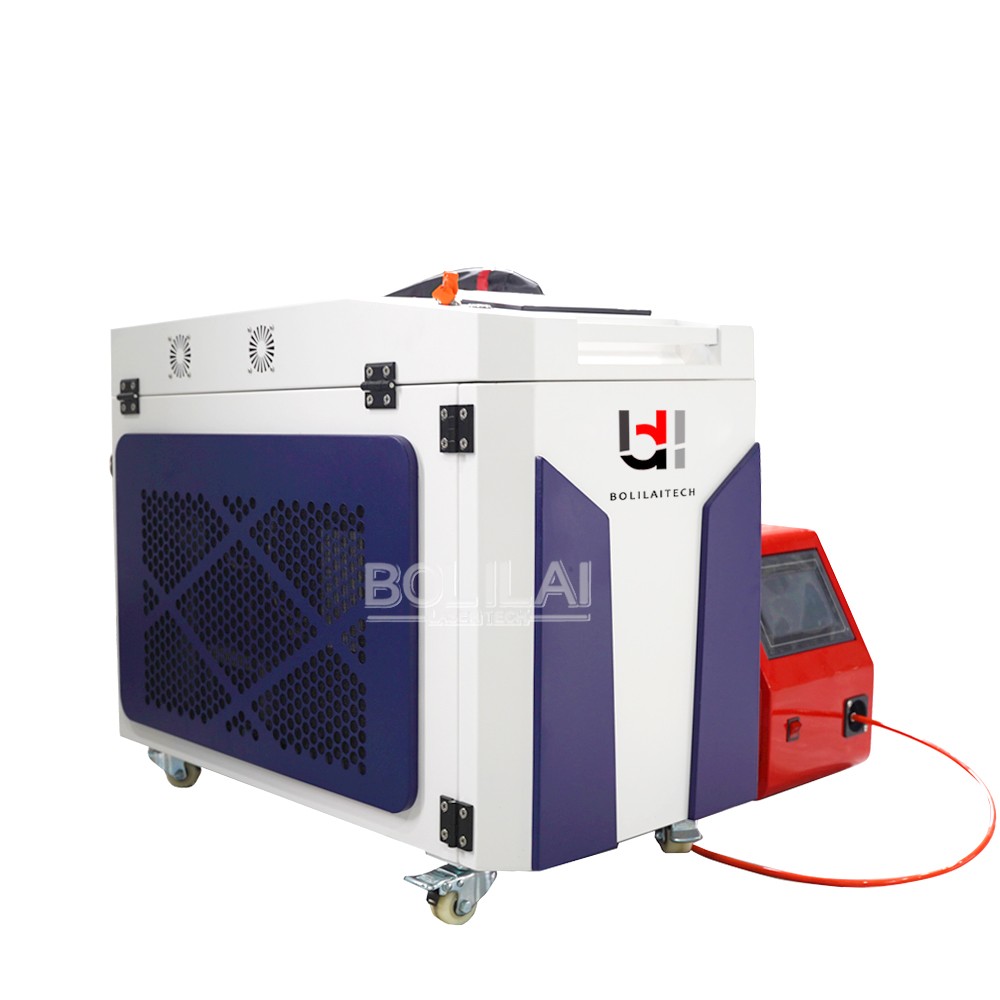

1. Four-in-one handheld laser welding machine adopts precision sheet metal cabinet structure, smart internal design, good control system, stable operation and high stability.

2. Expand the tolerance range of the processed parts and the width of the weld seam, solve the disadvantage of the small spot, and the weld seam shape is better

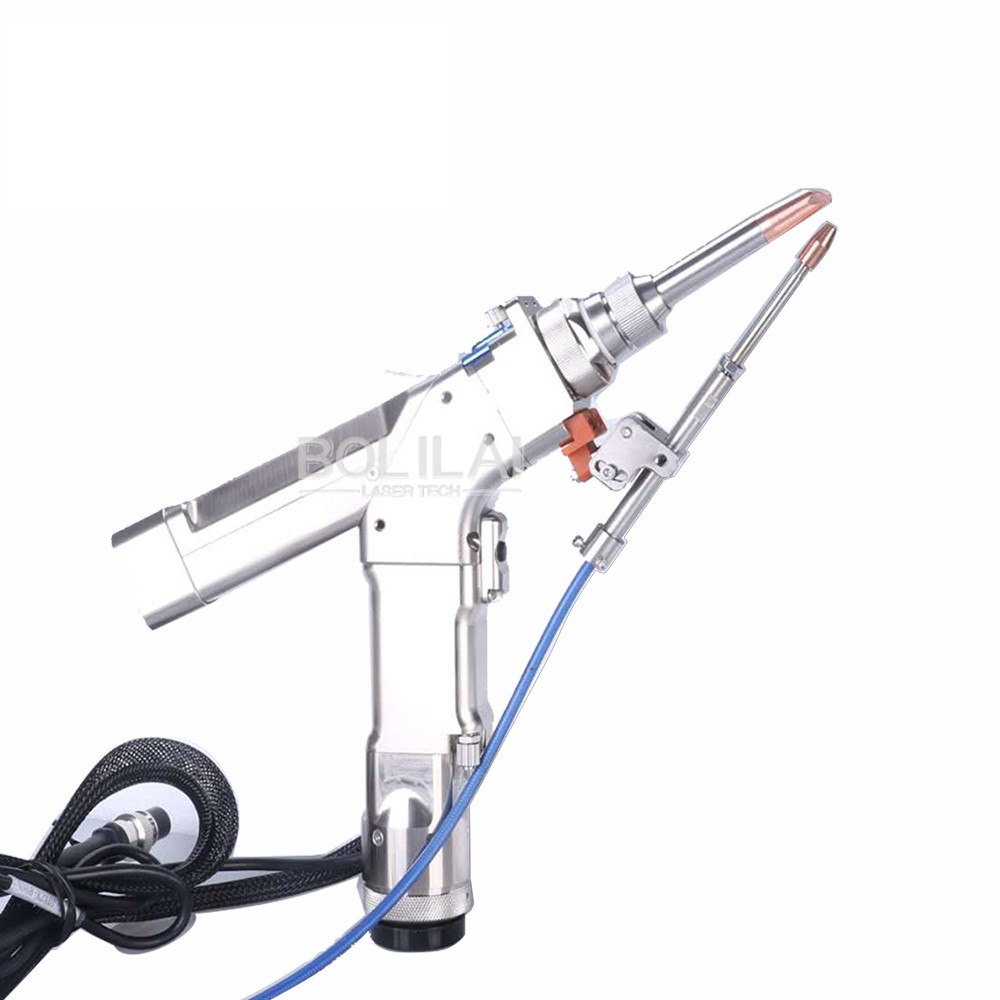

3. Portable shape, body engineering design method, comfortable grip.

4. The four-in-one handheld laser welding machine is easy to control and easy to operate.

5. The four-in-one handheld laser welding machine has multiple safety alarms, automatically locks the light after removing the workpiece, and has high safety; the weld seam is beautiful, the speed.

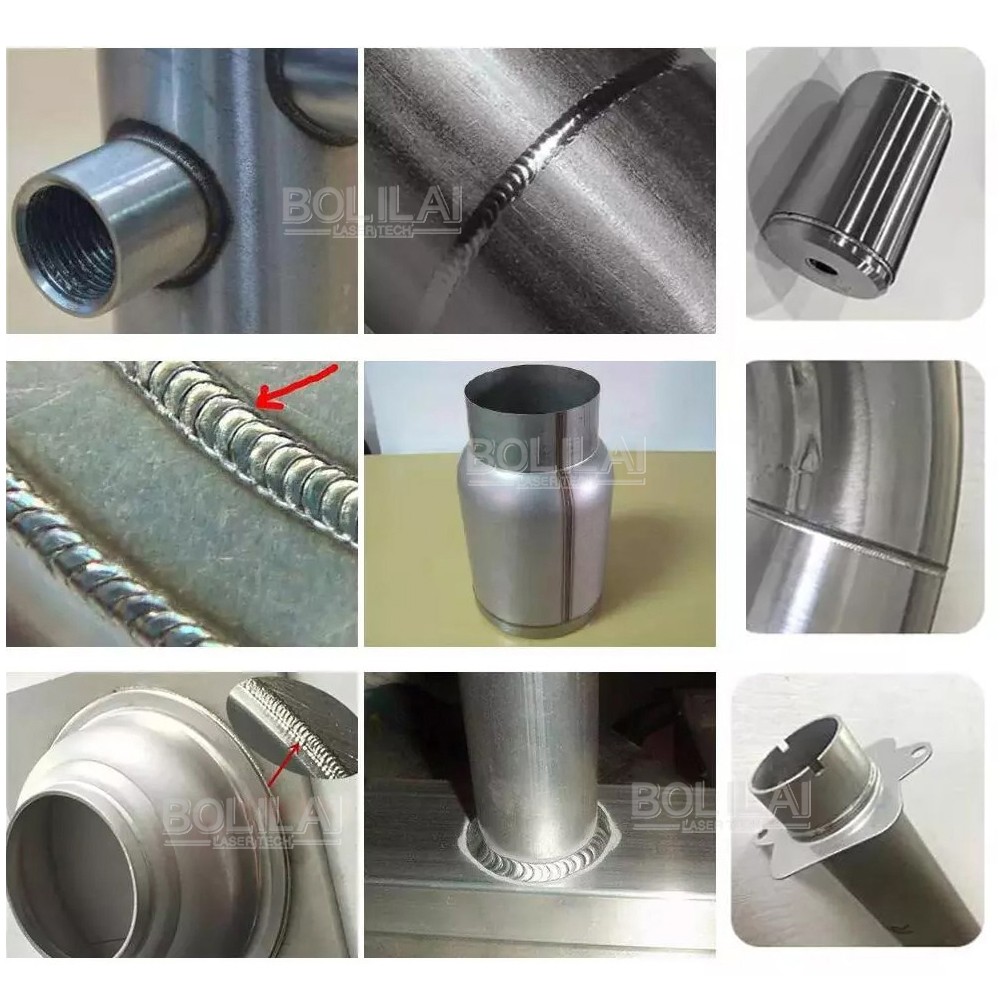

The four-in-one handheld laser welding machine has the characteristics of fast welding speed, high efficiency, good welding effect, less welding consumables, long life and environmental protection. It can be widely used in kitchen utensils, door chimney guardrails, stair elevators, stainless steel furniture, hardware sheet metal, Billboards, craft gifts, auto repair, automobile manufacturing, rail transit, aerospace and other industries welding.
